Understanding the M4 Clinch Stud: Applications and Benefits
In the world of mechanical fastening, the M4 clinch stud stands out as a versatile and reliable component. Whether you’re working on a high-tech engineering project or a simple DIY task, understanding the applications and benefits of the M4 clinch stud can significantly enhance your work efficiency and product durability.
A clinch stud is a type of fastener designed to be permanently attached to a sheet metal part. Once installed, it provides a robust threaded stud that can be used to attach components, panels, or other hardware.

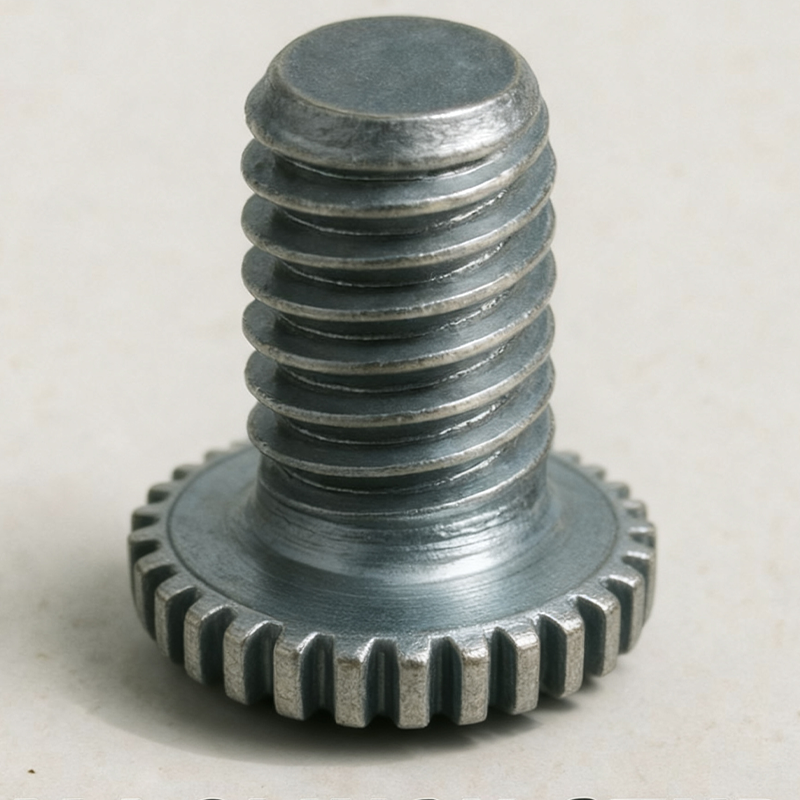

The M4 Clinch Stud
The “M4” in M4 clinch stud refers to the metric thread size, which is 4mm in diameter. This specific size is widely used in various industries due to its balance of strength and ease of installation.
Applications of the M4 Clinch Stud
The M4 clinch stud is used across multiple sectors, from automotive to electronics. Let’s delve into some of its most common applications:
Automotive Industry
In the automotive sector, the M4 clinch stud is frequently used for attaching panels and components to the vehicle’s body. Its secure fastening ensures that parts remain in place even under the stress of movement and vibration.

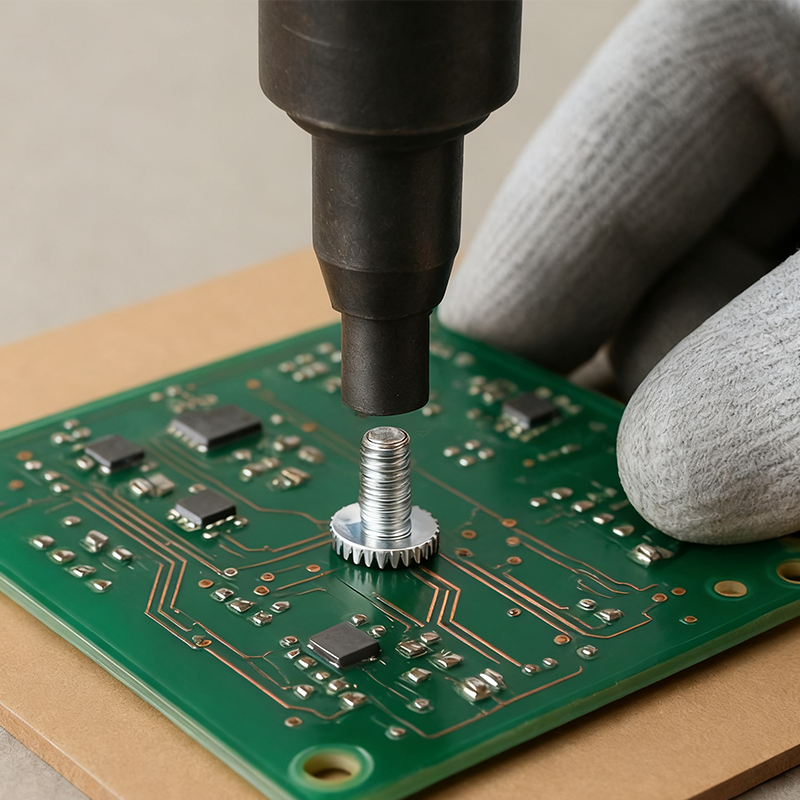

Electronics
For electronics, the M4 clinch stud is ideal for securing circuit boards and other components within devices. Its small size fits well into compact spaces, making it perfect for modern, slim devices where space is at a premium.
Sheet Metal Fabrication
In sheet metal fabrication, these studs are invaluable for creating strong, reliable joints without the need for welding. This not only speeds up the manufacturing process but also reduces the risk of distortion or damage to the metal.
Benefits of Using M4 Clinch Studs
Durability
The primary benefit of using an M4 clinch stud is durability. Once installed, the stud provides a robust connection point that can withstand significant physical stress.
Easy Installation
One of the standout features of the M4 clinch stud is its ease of installation. It requires no special tools or equipment, making it accessible for both professional and amateur use. Simply press the stud into a pre-punched hole in the sheet metal, and it’s ready to use.
Cost-Effective
By eliminating the need for welding or complex assembly, M4 clinch studs reduce labor costs and time, making them a cost-effective solution for high-volume manufacturing and one-off projects alike.
Versatility
Their versatility is another advantage. M4 clinch studs can be used in a wide range of materials, including various metals and plastics, which makes them suitable for diverse applications.
Choosing the Right M4 Clinch Stud
When selecting an M4 clinch stud, consider the material, length, and thread type to ensure compatibility with your project needs.
Material Considerations
Common materials for M4 clinch studs include stainless steel, aluminum, and zinc-plated steel. Each material offers different benefits:
- Stainless Steel: Offers excellent corrosion resistance, making it ideal for outdoor or high-moisture environments.
- Aluminum: Lightweight and corrosion-resistant, suitable for applications where weight is a concern.
- Zinc-Plated Steel: Provides a balance of strength and cost-effectiveness, suitable for general applications.
Length and Thread Type
Choose the length based on the thickness of the materials you are fastening. The thread type should match the components you intend to attach to the stud.
Installation Tips for M4 Clinch Studs
Preparing the Surface
Ensure that the surface where the clinch stud will be installed is clean and free of debris. This ensures a secure and reliable installation.
Using Proper Tools
While special tools are not required, using a press or a hammer with a proper die can facilitate a more straightforward installation. It’s important to ensure even pressure is applied to avoid damaging the stud or the sheet.
Testing the Installation
After installation, test the stud by applying pressure to ensure it is securely fastened. This step is crucial, especially in applications where safety is a concern.
Conclusion
The M4 clinch stud is a robust, versatile fastener ideal for various applications, from automotive to electronics and beyond. Its ease of installation, durability, and cost-effectiveness make it a preferred choice for professionals and DIY enthusiasts alike.
By understanding the applications and benefits of the M4 clinch stud, you can make informed decisions that enhance the efficiency and reliability of your projects. Whether you’re attaching panels to a car body or securing components in an electronic device, the M4 clinch stud is a practical and efficient solution.
Embrace the efficiency and simplicity of the M4 clinch stud in your next project, and experience the difference it can make in the quality and durability of your work.
